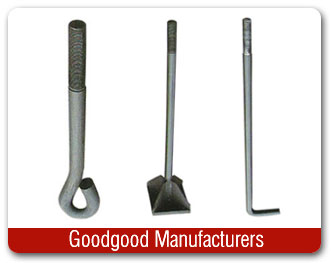

>> Anchor Bolts / J-Bolts / L-Bolt / Bent Anchor Bolts / Foundation Bolt |
|
|
|
Goodgood
manufacture's
anchor
bolts
from
1/4″ to
4 1/2″ ,
and
metric
equivalents,
diameter
in
carbon,
alloy
and
stainless
steel.
We make
straight
anchor
bolts,
bent
anchor
bolts
and
headed
anchor
bolts to
ASTM
specifications
including
F1554
grades
36, 55
and 105.
L-Bolts
are used
to
attach a
plate
member
to a
concrete
or
masonry
foundation,
provide
anchorage
for
lightweight
post
bases,
and for
general
anchorage
to
concrete.
They are
packaged
with
nuts and
cut
washers.
Many
building
codes
require
that
additional
bearing
plates
be used
with the
bolt in
high
wind.

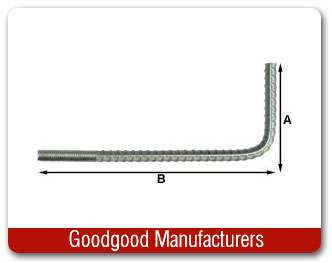

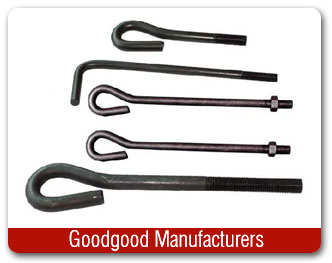

Bent
anchor
bolts
are
embedded
in
concrete
and used
to
support
structural
steel
columns,
light
poles,
highway
sign
structures,
bridge
rail,
equipment,
and many
other
applications.

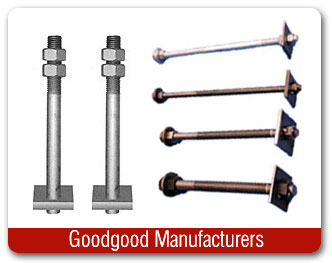

Anchor
Bolts
are used
with the
head
embedded
in
masonry
or
concrete
and its
threaded
part
protruding
to hold
a
structure
or
machinery
in
place.
Usually
made
from
round
bar
stock,
they are
threaded
on one
end and
bent or
curved
on the
other
end.
Base
Industrial
supplies
Anchor
Bolts in
standard
or made
to order
sizes –
right
angle &
acute
angle
bends,
low
carbon,
alloy &
stainless
steel
Specification:
ANSI,
ISO JIS
GB, DIN,
Non-standard-according
to
customers’
drawings.
DIA:
1/2”,
5/8”,
3/4”,
7/8”,
1”, M12,
M14,
M16,
M18,
M20,
M22,
M24,
M27, M30
or as
per
customer's
specification
Length:
200,
250,
300,
400,
500,
600,
700,
800,
900,
1000 or
as per
customer's
specification
Material:
carbon
steel,
stainless
steel
Finish:
Electro-galvanizing/
Zinc
plated/
Hot dip
galvanizing
Usage:
aerospace,
automobile,
motorcycles,
agricultural
machinery,
construction
transportation,
electric
power,
electronics,
chemicals,
home
appliances,
military
industry
etc. |
|
|
| |
|
|
|
|
| |
|
